Spectacle Blind Flanges— Manufacturers & Suppliers in India
Manibhadra Metals is a trusted manufacturer, supplier, stockist, and exporter of ASME B16.48 Spectacle Blind Flanges in India. We supply Spectacle Blinds, Figure-8 Blinds, Spades, and Ring Spacers in various sizes, pressure classes, face types, standards, and material grades for oil and gas, petrochemical, refinery, power, chemical, and industrial piping applications.
A Spectacle Blind Flange consists of a solid disc and an open ring joined by a connecting web. The open section allows pipeline flow, while the solid section provides complete isolation. By rotating the component between mating flanges, the pipeline can be changed from an open position to a fully closed condition.
Manibhadra Metals supplies Spectacle Blind Flanges in accordance with ASME B16.48, ASME B16.5, ASME B16.47 Series A and B, MSS SP-44, EN 1092, DIN, BS, JIS, and AWWA C207. Available face types include Raised Face, Flat Face, and Ring Type Joint, with pressure ratings from Class 150 to 2500 and PN-rated options.
Our Spectacle Blind Flanges are available in Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Super Duplex, Inconel, Monel, Hastelloy, Nickel Alloy, and other special materials. Standard sizes generally range from NPS 1/2″ to 24″, with custom dimensions, thicknesses, coatings, testing, and certification available as per project requirements.
| Quick Specification Reference | |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200 NB) • DN10 to DN5000 |
| Standards | ASME B16.5, ASME B16.47 Series A & B, ASME B16.48, MSS SP-44, BS 4504, BS 10, EN 1092, DIN, JIS B2220, API 605, AWWA C207, GOST, UNI and ISO |
| Pressure Ratings | ANSI Class 150, 300, 600, 900, 1500 and 2500 • DIN PN6, PN10, PN16, PN25, PN40 and PN64 • JIS 5K to 63K |
| Face Types | Raised Face, Flat Face, Ring Type Joint, Large Male-Female, Small Male-Female, Lap Joint Face, Tongue and Groove |
| Available Types | Forged, Plate, Threaded, Screwed, Equal, Reducing, Spade and Ring Spacer Configurations |
| Manufacturing Process | Forged, Heat Treated, Cut, Machined and Finished as per Standard or Customer Drawing |
| Surface Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Passivation, Cold Galvanized and Hot-Dip Galvanized |
| Testing | Spectrographic Analysis, Hydrostatic Testing, Radiography, Ultrasonic Testing, Magnetic Particle Inspection and Dimensional Inspection |
| Certificates | EN 10204 3.1 / 3.2 MTC, Raw Material Certificate, Radiography Report, NACE MR0103, NACE MR0175 and Third-Party Inspection |
| Special Design | Custom Thickness, Bore, Face, Drilling Pattern and Dimensions as per Customer Drawings |
| Applications | Oil and Gas Pipelines, Refineries, Petrochemical Plants, Nuclear Power, Heavy Oil Processing, Chemical Plants and Industrial Piping Systems |
Overview
How Spectacle Blind Flanges Work
1
OPEN POSITION
The open ring, or spacer side, is positioned between the two mating flanges during normal operation. Its bore aligns with the pipeline, allowing process fluid or gas to pass through the line with minimal obstruction.
2
LOOSEN & ROTATE
When positive isolation is required, the system is depressurized and the flange bolts are loosened according to the approved procedure. The spectacle blind is then rotated so the solid blind disc moves into the pipeline bore.
3
CLOSED POSITION
The solid blind section is positioned between the mating flanges and the joint is properly reassembled and tightened. This creates a physical barrier that blocks flow and provides positive line isolation for maintenance, inspection, or shutdown.
4
VISIBLE ISOLATION
Because the blind and spacer are permanently connected in a figure-8 shape, the exposed side provides a clear visual indication of the line configuration. Operators can readily verify whether the pipeline is configured for flow or positive isolation.
PRICE TABLE
Spectacle Blind Flanges Reference Price Chart
The prices listed above are indicative and subject to change based on quantity, material grade, and market conditions. For an accurate quotation on Spectacle Blind Flanges, please contact our sales team directly.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| SR NO | Description | Piping Material Class /QTY | PRICE (USD$) | |
|---|---|---|---|---|
| 1 | SPECTACLE BLIND: 4 NPS, CL.150#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A01E | 62 NOS | $89.00 |
| 2 | SPECTACLE BLIND: 3 NPS, CL.150#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A01E | 30 NOS | $52.00 |
| 3 | SPECTACLE BLIND: 2 NPS, CL.150#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A01E | 12 NOS | $11.00 |
| 4 | SPECTACLE BLIND: 1/2 NPS,CL.150#, RF,SMF( Ra=3.2 -6.3μm), NACE MR-0175/ISO 15156,ASTM A 516 GR.70 N (FIG.8, ASME B16.48) | A01E | 4 NOS | $11.00 |
| 5 | SPECTACLE BLIND: 8 NPS, CL.300#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A03E | 4 NOS | $25.00 |
| 6 | SPECTACLE BLIND: 6 NPS, CL.300#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A03E | 5 NOS | $33.00 |
| 7 | SPECTACLE BLIND: 4 NPS, CL.300#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A03E | 9 NOS | $14.00 |
| 8 | SPECTACLE BLIND: 2 NPS, CL.300#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A03E | 4 NOS | $36.00 |
| 9 | SPECTACLE BLIND: 3/4 NPS, CL.300#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A03E | 12 NOS | $32.00 |
| 10 | SPECTACLE BLIND: 6 NPS, CL.600#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A06E | 3 NOS | $36.00 |
| 11 | SPECTACLE BLIND: 2 NPS, CL.600#, RF, SMF ( Ra=3.2 - 6.3μm ), NACE MR-0175/ISO 15156, ASTM A 516 GR.70 N, (FIG.8, ASME B16.48) | A06E | 7 NOS | $75.00 |
| 12 | SPECTACLE BLIND: 2 NPS, CL.150#, RF, SMF ( Ra=3.2 -6.3μm ),ASTM A 516 GR.60, GALV. TO A153(FIG.8, ASME B16.48) | G01A | 5 NOS | $95.00 |
SPECIFICATION TABLE
Spectacle Blind Flange Specifications
Explore the complete technical specifications of Spectacle Blind Flanges, including available sizes, pressure ratings, international standards, flange face types, coatings, production methods, testing procedures, certifications, applications, and export markets. Manibhadra Metals supplies precision-manufactured Spectacle Blind Flanges for reliable positive isolation in high-pressure and critical piping systems
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Specification | Details |
|---|---|
| Spectacle Blind Flange Raised Face Specification | Spectacle Blind Flange Raised Face Specification |
| ASME B16.5 Spectacle Blind Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Spectacle Blind Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Spectacle Blind Flange, ASME Spectacle Blind Flange, BS Spectacle Blind Flange, DIN Spectacle Blind Flange, EN Spectacle Blind Flange, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Spectacle Blind Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Spectacle Blind Flange |
| Spectacle Blind Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Spectacle Blind Flange |
| JIS Spectacle blind flange raised face | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Spectacle Blind Flange |
| UNI Spectacle blind flange pn16 | 6Bar 10Bar 16Bar 25Bar 40Bar Spectacle Blind Flange |
| EN Spectacle blind flange flat face | 6Bar 10Bar 16Bar 25Bar 40Bar Spectacle Blind Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Spectacle Blind Flange |
| Most common types of Spectacle Blind Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Spectacle Blind Flange manufacturers in India |
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Spectacle Blind Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange |
| B.S | BS4504 , BS3293, BS1560, BS10 |
| AS 2129 | Table D; Table E; Table H |
| ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| ANSI | ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 |
| ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 | ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| American standard (ANSI) | American standard (ANSI) |
| German (DIN) | German (DIN) |
| British standard (BS) | British standard (BS) |
| DIN | DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Spectacle Blind Flange |
| The other standard | AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Spectacle Blind Flange Uses & application |
Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Export to stainless steel spectacle blind flange | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Materials
Spectacle Blind Flanges Material Grades
Explore our complete range of Spectacle Blind Flanges manufactured in Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Super Duplex, Titanium, Copper, Copper Nickel, Inconel, Hastelloy, Monel, Aluminium, Nickel, and other special alloys. Manibhadra Metals supplies Spectacle Blind Flanges in accordance with ASTM, ASME, ANSI, DIN, EN, ISO, BS, and JIS standards for critical industrial piping, positive isolation, and high-pressure applications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Material | Standards & Grades |
|---|---|
| Carbon Steel Spectacle Blind Flange | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
| Stainless Steel Spectacle Blind Flanges | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
| Alloy Steel Spectacle Blind Flanges | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
| Titanium Spectacle Blind Flanges | ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 | R52400/GR.7 | R53400/GR.12 | R56320/GR.9 | R56400/GR.5 |
| Copper Spectacle Blind Flanges | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
| Copper Nickel Spectacle Blind Flanges | ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Brass Spectacle Blind Flanges | 3602 / 2604 / H59 / H62 / etc. |
| Inconel Spectacle Blind Flanges | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 Flanges |
| Hastelloy Spectacle Blind Flanges | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
| Monel Spectacle Blind Flanges | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Alloy 20 Spectacle Blind Flanges | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium Spectacle Blind Flanges | 5052 /6061/ 6063 / 2017 / 7075 / etc. |
| Nickel Spectacle Blind Flanges | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Duplex Spectacle Blind Flanges | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex Spectacle Blind Flanges | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Incoloy Spectacle Blind Flanges | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
| 254 Smo Spectacle Blind Flanges | ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Nimonic Spectacle Blind Flanges | Nimonic 75, Nimonic 80A, Nimonic 90 |
| Other Spectacle Blind Flanges material | Tin bronze, Alumunum bronze, Lead bronze |
PRODUCT VARIANTS AND SPECIFICATIONS
Spectacle Blind Flanges Material Types & Configurations
Explore our complete range of Spectacle Blind Flanges manufactured to ASME B16.5, ASME B16.47, ANSI B16.48, EN 1092-1, AWWA C207, and MSS SP-44 standards. Available in Raised Face, Flat Face, grooved, forged, Class 150, Class 300, Class 600, PN16, and other configurations for positive pipeline isolation, high-pressure service, large-diameter pipelines, waterworks, and critical process piping applications.
ASME B16.5 Spectacle Blind Flange
20IN, 150LB Spectacle Blind Flange manufactured in ASTM A182 F316L. Designed for positive pipeline isolation with corrosion resistance and reliable performance in demanding process piping applications.
ASME B16.5 Spectacle Blind Flange Raised Face
10 Inch, 600LB Spectacle Blind Flange with raised face configuration. Designed for high-pressure piping applications requiring dependable sealing and positive line isolation.
ANSI B16.5 Spectacle Blind Flange Flat Face
PN250, DN50 Spectacle Blind Flange manufactured in ASTM A350 LF2 CL1 to ANSI B16.48 requirements. Suitable for demanding piping systems requiring positive isolation and reliable low-temperature service.
ASME B16.47 Series A Piping Spectacle Blind Flange
DN500, PN20 Spectacle Blind Flange with Raised Face configuration to ANSI B16.48. Designed for large-diameter piping systems requiring secure isolation, accurate dimensional compatibility, and dependable sealing.
ASME B16.47 Series B Spectacle Blind Flange RF
ASME B16.47 Series B Spectacle Blind Flange with Raised Face design for large-bore piping systems. Provides a practical means of positive isolation for maintenance, inspection, shutdown, and process control requirements.
Class 150 Spectacle Blind Flange
Class 150 Spectacle Blind Flange designed for positive isolation of low-to-moderate pressure piping systems. Commonly used in oil and gas, petrochemical, refinery, chemical, utility, and general process installations.
Spectacle Blind Flange 300 Dimensions
Class 300 Spectacle Blind Flange manufactured with controlled outside diameter, bore, thickness, spacer dimensions, and connecting web geometry. Designed for dependable isolation in medium-to-high-pressure piping applications.
ANSI B16.5 Threaded Spectacle Blind Flange EN 1092-1 Type 02
ANSI B16.5 Threaded Spectacle Blind Flange EN 1092-1 Type 02 configuration for industrial piping systems. Designed to provide reliable pipeline isolation while meeting specified dimensional and connection requirements.
Spectacle Blind Flange PN16
PN16 Spectacle Blind Flange designed for piping systems with PN16 pressure requirements. Suitable for water treatment, chemical processing, utilities, industrial plants, and general process piping requiring positive line isolation.
Forged Grooved Spectacle Blind Flange
Forged Grooved Spectacle Blind Flange manufactured for applications requiring high mechanical strength and a specified grooved facing arrangement. Provides positive isolation with robust construction for demanding industrial piping service
AWWA C207 Class D Spectacle Blind Flange NPT
AWWA C207 Class D Spectacle Blind Flange NPT designed for waterworks and large-diameter pipeline applications. Manufactured for dependable line isolation while meeting specified dimensional and pressure requirements.
MSS SP-44 Spectacle Blind Flange JIS 10K
MSS SP-44 Spectacle Blind Flange JIS 10K configuration designed for industrial and large-diameter piping applications. Manufactured to provide reliable positive isolation with accurate dimensions and dependable sealing performance.
DIMENSIONS TABLE

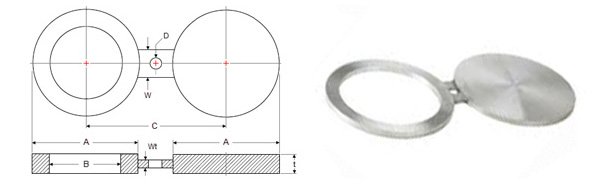

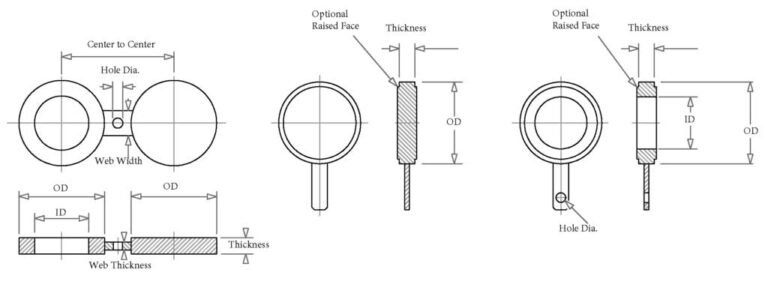

Spectacle Blind Flange Dimensions
The Spectacle Blind Flange Dimensions Chart provides detailed dimensional information for spectacle blind flanges across various sizes, pressure classes, and applicable standards. It includes key measurements such as nominal size, inside diameter, outside diameter, thickness, centre-to-centre dimensions, web width, web thickness, hole diameter, and approximate weights. Dimensions are provided in inches and/or millimetres (mm), as applicable, to assist with product selection and piping system requirements.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
DIMENSIONS TABLE
Class 150 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with Class 150 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 45 | 60 | 3 | 38 | 2 | 15.875 | 0.07 | 0.03 | 0.03 |
| 3/4 | 20 | 21 | 54 | 70 | 3 | 38 | 2 | 15.875 | 0.1 | 0.05 | 0.04 |
| 1 | 25 | 27 | 64 | 80 | 3 | 38 | 2 | 15.875 | 0.14 | 0.07 | 0.06 |
| 1 1/4 | 32 | 42 | 73 | 90 | 6.4 | 38 | 4 | 15.875 | 0.35 | 0.21 | 0.14 |
| 1 1/2 | 40 | 48 | 83 | 100 | 6.4 | 38 | 4 | 15.875 | 0.46 | 0.27 | 0.18 |
| 2 | 50 | 61 | 102 | 120 | 6.4 | 51 | 4 | 19.05 | 0.68 | 0.41 | 0.26 |
| 2 1/2 | 65 | 73 | 107 | 140 | 6.4 | 51 | 4 | 19.05 | 0.7 | 0.46 | 0.24 |
| 3 | 80 | 89 | 133 | 150 | 6.4 | 64 | 4 | 19.05 | 1.1 | 0.71 | 0.39 |
| 3 1/2 | 90 | 102 | 159 | 175 | 9.7 | 64 | 5 | 19.05 | 2.44 | 1.54 | 0.9 |
| 4 | 100 | 114 | 172 | 190 | 9.7 | 64 | 5 | 19.05 | 2.81 | 1.8 | 1.01 |
| 5 | 130 | 141 | 194 | 215 | 9.7 | 76 | 5 | 22.225 | 3.37 | 2.29 | 1.08 |
| 6 | 150 | 168 | 219 | 240 | 12.7 | 76 | 7 | 22.225 | 5.39 | 3.82 | 1.57 |
| 8 | 200 | 219 | 276 | 300 | 12.7 | 76 | 10 | 22.225 | 8.32 | 6.07 | 2.25 |
| 10 | 250 | 273 | 337 | 360 | 15.7 | 102 | 12 | 25.4 | 15.04 | 11.19 | 3.84 |
| 12 | 300 | 324 | 406 | 430 | 19.1 | 102 | 15 | 25.4 | 26.95 | 19.77 | 7.18 |
| 14 | 350 | 356 | 448 | 475 | 19.1 | 108 | 15 | 28.575 | 32.94 | 24.07 | 8.87 |
| 16 | 400 | 406 | 511 | 540 | 22.4 | 108 | 17 | 28.575 | 50.27 | 36.73 | 13.54 |
| 18 | 450 | 457 | 546 | 580 | 25.4 | 114 | 20 | 31.75 | 61.79 | 47.55 | 14.23 |
| 20 | 500 | 508 | 603 | 635 | 28.4 | 121 | 22 | 31.75 | 83.67 | 64.85 | 18.82 |
| 24 | 600 | 610 | 714 | 750 | 31.8 | 140 | 24 | 34.925 | 129.3 | 101.8 | 27.49 |
DIMENSIONS TABLE
Class 300 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with Class 300 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
| 3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
| 1 | 25 | 27 | 70 | 90 | 6.4 | 38 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
| 1 1/4 | 32 | 42 | 79 | 100 | 6.4 | 38 | 4 | 19.05 | 0.43 | 0.25 | 0.17 |
| 1 1/2 | 40 | 48 | 92 | 115 | 6.4 | 38 | 4 | 22.225 | 0.58 | 0.34 | 0.24 |
| 2 | 50 | 61 | 108 | 125 | 9.7 | 51 | 5 | 19.05 | 1.19 | 0.71 | 0.48 |
| 2 1/2 | 65 | 73 | 127 | 150 | 9.7 | 51 | 5 | 22.225 | 1.64 | 0.98 | 0.65 |
| 3 | 80 | 89 | 146 | 170 | 9.7 | 64 | 5 | 22.225 | 2.11 | 1.29 | 0.81 |
| 3 1/2 | 90 | 102 | 162 | 185 | 12.7 | 64 | 7 | 22.225 | 3.35 | 2.09 | 1.26 |
| 4 | 100 | 114 | 178 | 200 | 12.7 | 64 | 7 | 22.225 | 4.01 | 2.52 | 1.49 |
| 5 | 130 | 141 | 213 | 235 | 15.7 | 76 | 8 | 22.225 | 6.98 | 4.47 | 2.51 |
| 6 | 150 | 168 | 248 | 270 | 15.7 | 76 | 8 | 22.225 | 9.34 | 6.06 | 3.28 |
| 8 | 200 | 219 | 305 | 330 | 22.4 | 76 | 17 | 25.4 | 19.42 | 13.08 | 6.33 |
| 10 | 250 | 273 | 359 | 385 | 25.4 | 102 | 20 | 28.575 | 29.22 | 20.55 | 8.66 |
| 12 | 300 | 324 | 419 | 450 | 28.4 | 102 | 22 | 31.75 | 43.9 | 31.31 | 12.58 |
| 14 | 350 | 356 | 483 | 515 | 31.8 | 108 | 24 | 31.75 | 67.86 | 46.58 | 21.27 |
| 16 | 400 | 406 | 536 | 570 | 38.1 | 108 | 29 | 34.925 | 98.04 | 68.74 | 29.3 |
| 18 | 450 | 457 | 594 | 630 | 41.1 | 114 | 31 | 34.925 | 128.23 | 91.06 | 37.16 |
| 20 | 500 | 508 | 651 | 685 | 44.5 | 121 | 34 | 34.925 | 164.75 | 118.43 | 46.31 |
| 24 | 600 | 610 | 772 | 810 | 50.8 | 140 | 39 | 41.275 | 261.55 | 190.13 | 71.42 |
DIMENSIONS TABLE
Class 600 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with Class 600 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
| 3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
| 1 | 25 | 27 | 70 | 90 | 6.4 | 57 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
| 1 1/4 | 32 | 37 | 79 | 100 | 9.7 | 57 | 5 | 19.05 | 0.67 | 0.38 | 0.29 |
| 1 1/2 | 40 | 43 | 92 | 115 | 9.7 | 67 | 5 | 22.225 | 0.91 | 0.51 | 0.4 |
| 2 | 50 | 55 | 108 | 125 | 9.7 | 57 | 5 | 19.05 | 1.23 | 0.71 | 0.52 |
| 2 1/2 | 65 | 67 | 127 | 150 | 12.7 | 67 | 7 | 22.225 | 2.21 | 1.28 | 0.92 |
| 3 | 80 | 83 | 146 | 170 | 12.7 | 67 | 7 | 22.225 | 2.85 | 1.7 | 1.15 |
| 3 1/2 | 90 | 96 | 159 | 185 | 15.7 | 76 | 8 | 25.4 | 4.07 | 2.49 | 1.58 |
| 4 | 100 | 108 | 191 | 215 | 15.7 | 76 | 8 | 25.4 | 6.04 | 3.59 | 2.44 |
| 5 | 130 | 135 | 238 | 265 | 19.1 | 86 | 10 | 28.575 | 11.4 | 6.79 | 4.6 |
| 6 | 150 | 162 | 264 | 290 | 22.4 | 86 | 12 | 28.575 | 15.91 | 9.8 | 6.11 |
| 8 | 200 | 212 | 318 | 350 | 28.4 | 95 | 22 | 31.75 | 28.05 | 18.03 | 10.01 |
| 10 | 250 | 265 | 397 | 430 | 35.1 | 105 | 27 | 34.925 | 54 | 34.74 | 19.26 |
| 12 | 300 | 315 | 454 | 490 | 41.1 | 105 | 31 | 34.925 | 80.78 | 53.2 | 27.58 |
| 14 | 350 | 346 | 489 | 525 | 44.5 | 114 | 34 | 38.1 | 100.19 | 66.82 | 33.36 |
| 16 | 400 | 397 | 562 | 605 | 50.8 | 124 | 39 | 41.275 | 151.24 | 100.76 | 50.48 |
| 18 | 450 | 448 | 610 | 655 | 53.8 | 133 | 41 | 44.45 | 183.62 | 125.71 | 57.9 |
| 20 | 500 | 497 | 679 | 725 | 63.5 | 133 | 48 | 44.45 | 269.2 | 183.85 | 85.35 |
| 24 | 600 | 597 | 787 | 840 | 73.2 | 152 | 55 | 50.8 | 405.6 | 284.72 | 120.88 |
DIMENSIONS TABLE
Class 900 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with Class 900 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 60 | 80 | 6.4 | 38 | 4 | 22.225 | 0.27 | 0.14 | 0.13 |
| 3/4 | 20 | 21 | 67 | 90 | 6.4 | 41 | 4 | 22.225 | 0.34 | 0.18 | 0.16 |
| 1 | 25 | 27 | 76 | 100 | 6.4 | 57 | 4 | 25.4 | 0.43 | 0.23 | 0.2 |
| 1 1/4 | 32 | 37 | 86 | 110 | 9.7 | 57 | 5 | 25.4 | 0.81 | 0.45 | 0.36 |
| 1 1/2 | 40 | 43 | 95 | 125 | 9.7 | 67 | 5 | 28.575 | 0.98 | 0.54 | 0.43 |
| 2 | 50 | 55 | 140 | 165 | 12.7 | 57 | 7 | 25.4 | 2.88 | 1.56 | 1.32 |
| 2 1/2 | 65 | 67 | 162 | 190 | 12.7 | 67 | 7 | 28.575 | 3.82 | 2.09 | 1.73 |
| 3 | 80 | 83 | 165 | 190 | 15.7 | 67 | 8 | 25.4 | 4.68 | 2.68 | 2 |
| 4 | 100 | 108 | 203 | 235 | 19.1 | 76 | 10 | 31.75 | 8.48 | 4.94 | 3.54 |
| 5 | 130 | 135 | 244 | 280 | 22.4 | 86 | 12 | 34.925 | 14.18 | 8.37 | 5.81 |
| 6 | 150 | 162 | 286 | 320 | 25.4 | 86 | 13 | 31.75 | 21.9 | 13.04 | 8.86 |
| 8 | 200 | 212 | 356 | 395 | 35.1 | 95 | 27 | 38.1 | 45.96 | 27.93 | 18.02 |
| 10 | 250 | 265 | 432 | 470 | 41.1 | 105 | 31 | 38.1 | 78.21 | 48.16 | 30.04 |
| 12 | 300 | 315 | 495 | 535 | 47.8 | 105 | 36 | 38.1 | 117.31 | 73.55 | 43.76 |
| 14 | 350 | 346 | 518 | 560 | 53.8 | 114 | 41 | 41.275 | 140.86 | 90.65 | 50.2 |
| 16 | 400 | 397 | 572 | 615 | 60.5 | 124 | 46 | 44.45 | 188.73 | 124.31 | 64.42 |
| 18 | 450 | 448 | 635 | 685 | 66.5 | 133 | 50 | 50.8 | 252.97 | 168.39 | 84.57 |
| 20 | 500 | 497 | 696 | 750 | 73.2 | 133 | 55 | 53.975 | 331.81 | 222.68 | 109.13 |
| 24 | 600 | 597 | 835 | 900 | 88.9 | 152 | 67 | 66.675 | 579.52 | 389.25 | 190.27 |
DIMENSIONS TABLE
Class 1500 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with Class 1500 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 61 | 80 | 6.4 | 38 | 4 | 22.225 | 0.28 | 0.14 | 0.13 |
| 3/4 | 20 | 21 | 67 | 90 | 9.7 | 41 | 5 | 22.225 | 0.52 | 0.27 | 0.24 |
| 1 | 25 | 27 | 76 | 100 | 9.7 | 64 | 5 | 25.4 | 0.65 | 0.35 | 0.3 |
| 1 1/4 | 32 | 35 | 86 | 110 | 9.7 | 64 | 5 | 25.4 | 0.82 | 0.45 | 0.37 |
| 1 1/2 | 40 | 41 | 95 | 125 | 12.7 | 70 | 7 | 28.575 | 1.3 | 0.71 | 0.58 |
| 2 | 50 | 53 | 140 | 165 | 12.7 | 70 | 7 | 25.4 | 2.9 | 1.56 | 1.33 |
| 2 1/2 | 65 | 63 | 162 | 190 | 15.7 | 76 | 8 | 28.575 | 4.78 | 2.58 | 2.19 |
| 3 | 80 | 78 | 172 | 205 | 19.1 | 76 | 10 | 31.75 | 6.36 | 3.54 | 2.81 |
| 4 | 100 | 102 | 206 | 240 | 22.4 | 89 | 12 | 34.925 | 10.47 | 5.96 | 4.5 |
| 5 | 130 | 128 | 251 | 290 | 28.4 | 89 | 15 | 41.275 | 19.55 | 11.23 | 8.31 |
| 6 | 150 | 154 | 279 | 320 | 35.1 | 89 | 18 | 38.1 | 29.08 | 17.15 | 11.93 |
| 8 | 200 | 203 | 349 | 395 | 41.1 | 102 | 31 | 44.45 | 52.23 | 31.43 | 20.8 |
| 10 | 250 | 255 | 432 | 480 | 50.8 | 114 | 39 | 50.8 | 98.33 | 59.53 | 38.79 |
| 12 | 300 | 303 | 518 | 570 | 60.5 | 114 | 46 | 53.975 | 169.01 | 101.94 | 67.06 |
| 14 | 350 | 333 | 575 | 635 | 66.5 | 127 | 50 | 60.325 | 229.84 | 138.07 | 91.76 |
| 16 | 400 | 381 | 638 | 705 | 76.2 | 133 | 58 | 66.675 | 320.1 | 194.78 | 125.32 |
| 18 | 450 | 429 | 702 | 775 | 85.9 | 146 | 65 | 73.025 | 432.4 | 265.84 | 166.56 |
| 20 | 500 | 478 | 752 | 830 | 95.3 | 152 | 72 | 79.375 | 540.14 | 338.44 | 201.7 |
| 24 | 600 | 575 | 899 | 990 | 111.3 | 178 | 84 | 92.075 | 898.71 | 564.9 | 333.8 |
DIMENSIONS TABLE
Class 2500 Spectacle Blind Flange Dimensions Chart
All Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with ASME B16.48 Class 2500 specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 15 | 16 | 67 | 90 | 9.7 | 38 | 5 | 22.225 | 0.53 | 0.27 | 0.25 |
| 3/4 | 20 | 21 | 73 | 95 | 9.7 | 41 | 5 | 22.225 | 0.62 | 0.32 | 0.29 |
| 1 | 25 | 27 | 83 | 110 | 9.7 | 64 | 5 | 25.4 | 0.79 | 0.41 | 0.37 |
| 1 1/4 | 32 | 35 | 102 | 130 | 12.7 | 64 | 7 | 28.575 | 1.56 | 0.82 | 0.73 |
| 1 1/2 | 40 | 41 | 114 | 145 | 15.7 | 70 | 8 | 31.75 | 2.39 | 1.28 | 1.11 |
| 2 | 50 | 53 | 143 | 170 | 15.7 | 70 | 8 | 28.575 | 3.75 | 2.01 | 1.73 |
| 2 1/2 | 65 | 63 | 165 | 195 | 19.1 | 76 | 10 | 31.75 | 6.05 | 3.26 | 2.78 |
| 3 | 80 | 78 | 194 | 230 | 22.4 | 76 | 12 | 34.925 | 9.73 | 5.29 | 4.43 |
| 4 | 100 | 102 | 232 | 275 | 28.4 | 89 | 22 | 41.275 | 17.34 | 9.59 | 7.74 |
| 5 | 130 | 128 | 276 | 325 | 35.1 | 89 | 27 | 47.625 | 29.97 | 16.79 | 13.17 |
| 6 | 150 | 154 | 314 | 370 | 41.1 | 89 | 31 | 53.975 | 44.77 | 25.44 | 19.32 |
| 8 | 200 | 198 | 384 | 440 | 53.8 | 102 | 41 | 53.975 | 86.39 | 49.82 | 36.57 |
| 10 | 250 | 248 | 473 | 540 | 66.5 | 114 | 50 | 66.675 | 161.18 | 93.43 | 67.74 |
| 12 | 300 | 289 | 546 | 620 | 79.2 | 114 | 60 | 73.025 | 255.01 | 148.27 | 106.73 |
DIMENSIONS TABLE
JIS Spectacle Blind Flange Dimensions Chart
All JIS Spectacle Blind Flange dimensions are provided in both inches and millimetres (mm) and are manufactured in accordance with applicable JIS specifications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Nominal Size | Outside diameter of flange | Diameter of bolt hole centre circle | Diamter of bolt hole | Number of bolt | Nominal desig-nation of thread of bolt |
Inside diameter | Inside diameter | Depth of socket | Thickness of Flange | Diameter of hub Small diameter side | Diameter of hub Large diamter side | Totle length of flange | Radius of fillet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D | C | h | d0 | d(18) | S | t | a | b | T | r | ||
| 10 15 20 |
90 95 100 |
65 70 75 |
15 15 15 |
4 4 4 |
M12 M12 M12 |
17.8 22.2 27.7 |
12.7 16.1 21.6 |
10 10 13 |
12 12 14 |
23 27 33 |
26 30 36 |
16 16 20 |
4 4 4 |
| 25 32 40 |
125 135 140 |
90 100 105 |
19 19 19 |
4 4 4 |
M16 M16 M16 |
34.5 43.2 49.1 |
27.6 35.7 41.6 |
13 13 13 |
14 16 16 |
41 50 56 |
44 53 60 |
20 22 24 |
4 4 4 |
| 50 65 80 |
155 175 185 |
120 140 150 |
19 19 19 |
4 4 8 |
M16 M16 M16 |
61.1 77.1 90.0 |
52.9 67.9 80.7 |
16 16 16 |
16 18 18 |
69 86 99 |
73 91 105 |
24 27 30 |
4 4 4 |
PRESSURE RATINGS TABLE
Spectacle Blind Flange Pressure Ratings
The Spectacle Blind Flange Pressure Ratings Chart provides pressure ratings in psig at different operating temperatures for ASME pressure classes including Class 150, 300, 400, 600, 900, 1500, and 2500.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Temperature (°F) | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
|---|---|---|---|---|---|---|---|
| -20 to 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
TYPES
Explore Other Types Of Flanges
Discover a complete range of flange designs engineered for different pressure classes, piping systems, and industrial applications.
KNOWLEDGE BASE
Frequently Asked Questions
What is a Spectacle Blind Flange and how does it work?
A Spectacle Blind Flange is a pipeline isolation component consisting of a solid blind and an open spacer connected in a figure-eight shape. When the solid section is positioned between two mating flanges, it blocks the flow and isolates the pipeline. When the open spacer is positioned between the flanges, flow is permitted. Manibhadra Metals supplies Spectacle Blind Flanges for oil & gas, refinery, petrochemical, power, and critical industrial piping applications.
What sizes, pressure classes, and standards are available for Spectacle Blind Flanges?
Manibhadra Metals supplies Spectacle Blind Flanges in a wide range of sizes and pressure ratings, including Class 150, 300, 600, 900, 1500, and 2500. Spectacle blinds can be supplied according to ASME B16.48 and other applicable ANSI, ASME, DIN, EN, and JIS requirements, depending on the piping system and customer specification.
Which materials are available for Spectacle Blind Flanges?
Manibhadra Metals supplies Spectacle Blind Flanges in Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Super Duplex, and special alloy materials. Common requirements include ASTM A516 Grade 60/70 and stainless steel grades such as SS 304/304L and SS 316/316L. Material selection depends on pressure, temperature, corrosion conditions, service medium, and project specifications.
Why choose Manibhadra Metals as a Spectacle Blind Flange manufacturer and supplier in India?
Manibhadra Metals manufactures and supplies Spectacle Blind Flanges for domestic and export requirements in various sizes, pressure classes, materials, and facing types including RF, FF, and RTJ. Custom Spectacle Blind Flanges can also be supplied according to customer drawings and project specifications. Customers can submit their size, material grade, pressure class, standard, quantity, and testing requirements to receive a quotation.
Does Manibhadra Metals supply NACE-compliant Spectacle Blind Flanges?
Yes. Manibhadra Metals can supply Spectacle Blind Flanges for sour-service requirements where NACE MR0175 / ISO 15156 compliance is specified. Products can also be supplied with applicable Material Test Certificates, inspection documentation, testing requirements, and third-party inspection as required by the customer’s project specification.
GET IN TOUCH
Ready to discuss your project requirements?
Our team is here to help you find the right metal solutions for your application.
