Nipo Flanges— Manufacturers & Suppliers in India
Manibhadra Metals is a trusted manufacturer, supplier, stockist, and exporter of ANSI/ASME B16.47 Nipo Flanges in India. We supply Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Inconel, Monel, Hastelloy, and other special-alloy Nipo Flanges for branch connections in high-pressure and critical piping systems.

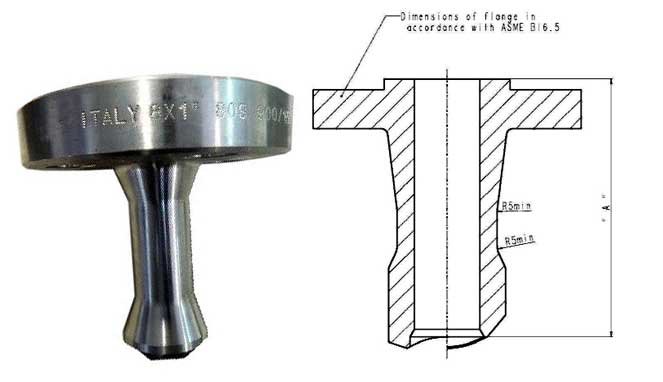

A Nipo Flange is a single-piece forged component that combines the functions of a Weld Neck Flange and a Nipolet. Since both sections are manufactured as one integral unit rather than welded together, the design provides improved strength, accurate alignment, reduced stress concentration, and reliable leak-resistant performance.
Our Nipo Flanges are available in ASME B16.5, ASME B16.47 Series A and Series B, EN 1092-1, EN 1092-2, DIN, AWWA C207, and MSS SP-44 standards. They can be supplied in Class 150, 300, 400, 600, 900, 1500, and 2500, as well as PN-rated configurations such as PN10, PN16, PN25, and PN40.
Manibhadra Metals manufactures Raised Face, Flat Face, RTJ, reducing, reinforced, and custom Nipo Flanges in standard and special dimensions. These products are widely used in oil and gas pipelines, refineries, petrochemical plants, pressure vessels, boilers, offshore systems, chemical processing units, and power-generation projects.
All Nipo Flanges can be supplied with dimensional inspection, PMI testing, ultrasonic testing, radiography, hydrostatic testing, EN 10204 3.1 or 3.2 Material Test Certificates, NACE compliance, and third-party inspection documentation according to customer and project requirements.
| Quick Specification Reference | |
|---|---|
| Size Range | 1/2" (15 NB) to 48" (1200 NB), DN10 to DN5000 |
| ANSI Pressure Ratings | Class 150, 300, 600, 900, 1500 and 2500 |
| DIN Pressure Ratings | 6 Bar, 10 Bar, 16 Bar, 25 Bar, 40 Bar, PN6, PN10, PN16, PN25, PN40 and PN64 |
| JIS Ratings | 5K, 10K, 16K, 20K, 30K, 40K and 63K |
| Standards | ASME B16.5, ASME B16.47 Series A & B, B16.48, MSS SP-44, API 605, AWWA C207, EN 1092-1, BS 4504, BS 10, DIN, JIS B2220, ISO 7005-1, GOST and UNI |
| Face Types | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Small Male-Female (SMF), Lap-Joint Face (LJF), Tongue & Groove and Grooved Face |
| Manufacturing Process | Forged, heat treated and precision machined |
| Common Types | Forged, Threaded, Screwed and Plate Nipoflanges |
| Configurations | Equal and Reducing Configurations |
| Special Design | Manufactured as per customer drawings in AS, ANSI, BS, DIN and JIS standards |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold Galvanized and Hot-Dip Galvanized |
| Testing | Direct-reading Spectrograph, Hydrostatic Testing, X-ray Inspection, Ultrasonic Flaw Detection and Magnetic Particle Inspection |
| Test Certificates | EN 10204 3.1B, EN 10204 3.1 and 3.2 MTC, Raw Material Certificate, 100% Radiography Test Report, NACE MR0103, NACE MR0175 and Third-Party Inspection Report |
| Production Equipment | Press Machine, Bending Machine, Pushing Machine, Electric Bevelling Machine and Sand-Blasting Machine |
| Applications | Bitumen Upgraders, Heavy Oil Refineries, Nuclear Power Plants, Petrochemical Plants and Acid Processing Systems |
| Origin | India, Western Europe, Japan, USA and Korea |
| Export Markets | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai and Peru |
Overview
How Nipo Flanges Work
1
Single Integral Forging
The Weld Neck Flange and Nipolet outlet are machined from one forged billet no intermediate weld between them. This gives the assembly a continuous grain structure and eliminates the weakest point of the equivalent two-piece assembly.
2
Schedule-Matched Bore
The Nipolet end of the fitting is butt-welded directly into the run pipe wall typically at 90°. The outlet self-reinforces the branch opening in the run pipe, meeting ASME B31.3 and B31.1 branch reinforcement requirements without a separate pad.
3
Flange Connects Branch Spool
The Weld Neck flange face on the outlet connects directly to the mating branch spool, valve, or instrument. This turns a branch connection into a bolted, removable flanged joint ideal for control valves, safety valves, and instruments needing regular maintenance.
4
Fewer Welds, Less NDE
Replacing a three-weld assembly (Nipolet-to-pipe + Nipolet-to-WN + WN-to-spool) with a two-weld assembly (Nipoflange-to-pipe + flange joint) reduces radiography scope, weld records, and hydrostatic test circuit complexity.
PRICE TABLE
Nipo Flange Reference Price Chart
The prices listed above are indicative and subject to change based on quantity, material grade, and market conditions. For an accurate quotation on Nipo Flanges, please contact our sales team directly.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| SR NO | QTY | Description | Price Per Piece (USD) |
|---|---|---|---|
| 1 | 50 | Flange 2" RF Nipoflange CS A/SA105 | $5.42 |
| 2 | 20 | Flange 2" 300 RF Nipoflange CS A/SA105 | $7.56 |
| 3 | 20 | Flange 3" 300 RF Nipoflange CS A/SA105 | $14.11 |
| 4 | 100 | Flange 4" 150 RF Nipoflange CS A/SA105 | $13.26 |
| 5 | 40 | Flange 4" 600 RF Nipoflange CS A/SA105 | $36.65 |
| 6 | 50 | Flange 6" 150 RF Nipoflange CS A/SA105 | $22.81 |
| 7 | 60 | Flange 6" 300 RF Nipoflange CS A/SA105 | $36.79 |
| 8 | 36 | Flange 8" 300 RF Nipoflange CS A/SA105 | $55.80 |
| 12 | 20 | Flange 4" 300 RF Nipo Flange CS A/SA105 | $24.80 |
| 13 | 50 | Flange 6" 300 RF Nipo Flange CS A/SA105 | $39.80 |
| 9 | 240 | Flange 16" 150 RF Nipoflange CS A/SA105 | $101.40 |
| 10 | 30 | Flange 3" 300 RF Nipo Flange CS A/SA105 | $20.55 |
| 11 | 120 | Flange 4" 150 RF Nipo Flange CS A/SA105 | $13.40 |
| Note: These are approximate prices for ASME B16.47 Nipoflanges in India. Final prices may vary depending on size, pressure class, material grade, quantity, testing requirements, certification, and market conditions. Contact Manibhadra Metals for the latest quotation. | |||
SPECIFICATION TABLE
Nipo Flange Specifications Chart
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Specification | Details |
|---|---|
| Nipo Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Nipo Flange |
| Nipo Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Nipo Flange |
| JIS ASME B16.47 Nipoflange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Nipo Flange |
| UNI ASME B16.47 Nipoflange Dimensions | 6Bar 10Bar 16Bar 25Bar 40Bar Nipo Flange |
| EN Standard MSS-SP-44 Nipoflange | 6Bar 10Bar 16Bar 25Bar 40Bar Nipo Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Nipo Flange |
| Most common types of Nipo Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations |
| ASME B16.47 Nipo Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| ANSI 150 Nipo Flange Dimensions | ANSI/ASME B16.47, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Nipo Flange, ASME Nipo Flange, BS Nipo Flange, DIN Nipo Flange, EN Nipo Flange, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Nipo Flange Uses & application |
Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Manufacturer of ANSI B16.5 Class 150 Nipoflange |
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Nipo Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange |
| B.S | BS4504 , BS3293, BS1560, BS10 |
| AS 2129 | Table D; Table E; Table H |
| ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| ANSI | ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 |
| ANSI Standards | ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| American standard | American standard (ANSI) |
| German standard | German (DIN) |
| British standard | British standard (BS) |
| DIN | DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Nipo Flange |
| The other standard | AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Export to ASME B16.47 Nipoflange | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Materials
Nipo Flange Material Grades
Explore our complete range of Nipo Flanges available in Alloy Steel, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Titanium, Copper, Copper Nickel, Inconel, Incoloy, Hastelloy, Monel, Nickel, Aluminium, and other special alloys. Manibhadra Metals supplies ASME B16.47 Nipoflanges in ASTM, ASME, DIN, EN, ISO, BS, JIS, and ANSI material grades for critical industrial piping applications.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Material | Standards & Grades |
|---|---|
| Titanium Nipo Flange |
ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 | R52400/GR.7 | R53400/GR.12 | R56320/GR.9 | R56400/GR.5 |
| Copper Nipo Flange | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
| Copper Nickel Nipo Flange | ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Carbon Steel Nipo Flange | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
| Stainless Steel Nipoflange | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
| Alloy Steel Nipo Flange | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
| Hastelloy Nipo Flange | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
| Brass Nipo Flange | 3602 / 2604 / H59 / H62 / etc. |
| Inconel Nipoflange | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, X750 Flanges |
| Monel Nipoflange | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Duplex Nipo Flange | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex Nipo Flange | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Alloy 20 Nipo Flange | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium Nipo Flange | 5052 / 6061 / 6063 / 2017 / 7075 / etc. |
| Nickel Nipo Flange | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Nimonic Nipo Flange | Nimonic 75, Nimonic 80A, Nimonic 90 |
| Other DIN Nipo Flange Material | Tin Bronze, Aluminium Bronze, Lead Bronze |
| Incoloy Nipo Flange | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
| 254 SMO Nipo Flange | ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
PRODUCT VARIANTS AND SPECIFICATIONS
Nipo Flange Material Types & Configurations
ASME B16.47 Nipo Flange
ASME B16.47 Nipo Flange manufactured as a one-piece forged branch connection for large-diameter piping systems. Designed for high strength, accurate alignment, and dependable performance in critical pipeline applications.
ASME B16.47 SS Nipo Flange
Stainless Steel ASME B16.47 Nipo Flange available in grades such as 304, 304L, 316, and 316L. Manufactured for corrosive, high-temperature, chemical, petrochemical, and offshore piping service.
ANSI B 16.5 Pipe Nipo Flange
ANSI B16.5 Pipe Nipo Flange combines a flange and branch outlet in one integral component. Designed for compact, strong, and leak-resistant branch connections in industrial piping systems.
ASME B16.47 Series A Nipo Flange
ASME B16.47 Series A Nipo Flange manufactured for large-bore and heavy-duty pipeline installations. Designed with robust dimensions, secure bolting, and reliable gasket sealing for demanding service.
ASME B16.47 Series B Blind Flange
ASME B16.47 Series B Nipo Flange offers a compact and comparatively lightweight design for large-diameter piping. Suitable for applications where reduced flange mass and installation space are important.
ANSI B16.5 Class 150 Nipo Flange
ANSI B16.5 Class 150 Nipo Flange manufactured for low-to-moderate pressure branch connections. Suitable for water, utilities, chemical processing, and general industrial piping applications.
ASME B16.47 Class 300 Raised Faced Nipo Flange
ASME B16.47 Class 300 Raised Face Nipo Flange designed with a raised sealing surface for improved gasket compression. Manufactured for medium-pressure oil, gas, refinery, and process piping systems.
Flat Face Nipo Flanges EN 1092-1 Type 02
EN 1092-1 Type 02 Flat Face Nipo Flange manufactured for European-standard piping systems. The flat face design supports full-face gasket contact and controlled sealing performance.
EN 1092-2 PN16 Nipoflange
EN 1092-2 PN16 Nipoflange manufactured for nominal pressure service up to 16 bar. Suitable for waterworks, utilities, chemical plants, and general industrial piping systems.
Forged reducing Nipoflange
Forged Reducing Nipoflange manufactured as an integral branch connection for joining a smaller outlet to a larger pipe. Designed for smooth size transition, structural strength, and reliable flow performance.
AWWA C207 Class d Nipo Flange
AWWA C207 Class D Nipo Flange designed for water transmission, treatment plants, and large-diameter utility pipelines. Manufactured for dependable branch connections in low-pressure water service.
MSS SP-44 Nipoflange
MSS SP-44 Nipoflange manufactured for large-diameter steel pipeline systems. Available in standard and custom bore, drilling, pressure, and material configurations for project-specific requirements.
DIMENSIONS TABLE
Nipo Flange Dimensions
Explore Nipo Flange branch dimensions for multiple outlet sizes, pressure classes, bore schedules, overall dimensions, and approximate weights. The following charts cover Class 150, 300, 600, 900, 1500, and 2500 configurations for industrial branch connections.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
DIMENSIONS TABLE
Branch 1/2″ Nipo Flange Dimensions
View dimensional details for Branch 1/2″ Nipo Flanges, including pressure rating, bore schedule, B, C, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 150# | STD | 15.8 | 18.5 | 88.9 | 11.2 | 0.9 |
| XS | 13.8 | 17.6 | 0.9 | |||
| 160 | 11.7 | 11.7 | 0.9 | |||
| XXS | 6.4 | 6.4 | 0.9 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 300# | STD | 15.8 | 18.5 | 95.3 | 14.3 | 1.2 |
| XS | 13.8 | 17.6 | 1.2 | |||
| 160 | 11.7 | 11.7 | 1.2 | |||
| XXS | 6.4 | 6.4 | 1.2 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 600# | STD | 15.8 | 18.5 | 95.3 | 14.3 | 1.3 |
| XS | 13.8 | 17.6 | 1.3 | |||
| 160 | 11.7 | 11.7 | 1.3 | |||
| XXS | 6.4 | 6.4 | 1.3 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 900# | STD | 15.8 | 18.5 | 120.6 | 22.4 | 2.4 |
| XS | 13.8 | 17.6 | 2.4 | |||
| 160 | 11.7 | 11.7 | 2.4 | |||
| XXS | 6.4 | 6.4 | 2.4 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 1500# | STD | 15.8 | 18.5 | 120.6 | 22.4 | 2.4 |
| XS | 13.8 | 17.6 | 2.4 | |||
| 160 | 11.7 | 11.7 | 2.4 | |||
| XXS | 6.4 | 6.4 | 2.4 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 2500# | STD | 15.8 | 18.5 | 133.4 | 30.2 | 3.6 |
| XS | 13.8 | 17.6 | 3.6 | |||
| 160 | 11.7 | 11.7 | 3.6 | |||
| XXS | 6.4 | 6.4 | 3.6 |
DIMENSIONS TABLE
Branch 3/4″ Nipo Flange Dimensions
View dimensional details for Branch 3/4″ Nipo Flanges, including pressure rating, bore schedule, B, C, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 150# | STD | 21 | 23.8 | 98.6 | 12.7 | 1.2 |
| XS | 18.9 | 22.8 | 1.2 | |||
| 160 | 15.6 | 15.6 | 1.4 | |||
| XXS | 11.1 | 11.1 | 1.5 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 300# | STD | 21 | 23.8 | 117.4 | 15.8 | 1.7 |
| XS | 18.9 | 22.8 | 1.9 | |||
| 160 | 15.6 | 15.6 | 2 | |||
| XXS | 11.1 | 11.1 | 2.1 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 600# | STD | 21 | 23.8 | 117.4 | 15.8 | 2 |
| XS | 18.9 | 22.8 | 2.1 | |||
| 160 | 15.6 | 15.6 | 2.2 | |||
| XXS | 11.1 | 11.1 | 2.2 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 900# | STD | 21 | 23.8 | 130 | 25.4 | 3.1 |
| XS | 18.9 | 22.8 | 3.2 | |||
| 160 | 15.6 | 15.6 | 3.2 | |||
| XXS | 11.1 | 11.1 | 3.3 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 1500# | STD | 21 | 23.8 | 130 | 25.4 | 3.1 |
| XS | 18.9 | 22.8 | 3.2 | |||
| 160 | 15.6 | 15.6 | 3.2 | |||
| XXS | 11.1 | 11.1 | 3.3 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 2500# | STD | 21 | 23.8 | 139.7 | 31.8 | 4.4 |
| XS | 18.9 | 22.8 | 4.5 | |||
| 160 | 15.6 | 15.6 | 4.5 | |||
| XXS | 11.1 | 11.1 | 4.6 |
DIMENSIONS TABLE
Branch 1″ Nipo Flange Dimensions
View dimensional details for Branch 1″ Nipo Flanges, including pressure rating, bore schedule, B, C, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 150# | STD | 26.6 | 30 | 108 | 14.3 | 1.7 |
| XS | 24.3 | 28.8 | 1.7 | |||
| 160 | 20.7 | 20.7 | 2 | |||
| XXS | 15.2 | 15.2 | 2.2 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 300# | STD | 26.6 | 30 | 124 | 17.6 | 2.3 |
| XS | 24.3 | 28.8 | 2.5 | |||
| 160 | 20.7 | 20.7 | 2.6 | |||
| XXS | 15.2 | 15.2 | 2.8 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 600# | STD | 26.6 | 30 | 124 | 17.6 | 2.6 |
| XS | 24.3 | 28.8 | 2.7 | |||
| 160 | 20.7 | 20.7 | 2.8 | |||
| XXS | 15.2 | 15.2 | 3 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 900# | STD | 26.6 | 30 | 149.4 | 28.5 | 4.5 |
| XS | 24.3 | 28.8 | 4.6 | |||
| 160 | 20.7 | 20.7 | 4.7 | |||
| XXS | 15.2 | 15.2 | 4.8 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 1500# | STD | 26.6 | 30 | 149.4 | 28.5 | 4.5 |
| XS | 24.3 | 28.8 | 4.6 | |||
| 160 | 20.7 | 20.7 | 4.7 | |||
| XXS | 15.2 | 15.2 | 4.8 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 2500# | STD | 26.6 | 30 | 158.8 | 35.1 | 6.1 |
| XS | 24.3 | 28.8 | 6.2 | |||
| 160 | 20.7 | 20.7 | 6.2 | |||
| XXS | 15.2 | 15.2 | 6.3 |
DIMENSIONS TABLE
Branch 1 1/2″ Nipo Flange Dimensions
View dimensional details for Branch 1 1/2″ Nipo Flanges, including pressure rating, bore schedule, B, C, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 150# | STD | 40.9 | 44.6 | 127 | 17.5 | 3.1 |
| XS | 38.1 | 43.2 | 3.3 | |||
| 160 | 34 | 34 | 3.5 | |||
| XXS | 28 | 28 | 3.8 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 300# | STD | 40.9 | 44.6 | 155.5 | 20.6 | 4.1 |
| XS | 38.1 | 43.2 | 4.5 | |||
| 160 | 34 | 34 | 4.7 | |||
| XXS | 28 | 28 | 5 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 600# | STD | 40.9 | 44.6 | 155.5 | 22.4 | 4.9 |
| XS | 38.1 | 43.2 | 5 | |||
| 160 | 34 | 34 | 5.2 | |||
| XXS | 28 | 28 | 5.5 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 900# | STD | 40.9 | 44.6 | 177.8 | 31.8 | 7.2 |
| XS | 38.1 | 43.2 | 7.4 | |||
| 160 | 34 | 34 | 7.6 | |||
| XXS | 28 | 28 | 7.9 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 1500# | STD | 40.9 | 44.6 | 177.8 | 31.8 | 7.2 |
| XS | 38.1 | 43.2 | 7.4 | |||
| 160 | 34 | 34 | 7.6 | |||
| XXS | 28 | 28 | 7.9 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 2500# | STD | 40.9 | 44.6 | 203.2 | 44.5 | 12 |
| XS | 38.1 | 43.2 | 12 | |||
| 160 | 34 | 34 | 12.2 | |||
| XXS | 28 | 28 | 12.5 |
DIMENSIONS TABLE
Branch 2″ Nipo Flange Dimensions
View dimensional details for Branch 2″ Nipo Flanges, including pressure rating, bore schedule, B, C, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 150# | STD | 52.5 | 56.4 | 152.4 | 19.1 | 4.1 |
| XS | 49.2 | 54.8 | 4.8 | |||
| 160 | 42.8 | 42.8 | 5.1 | |||
| XXS | 38.2 | 38.2 | 5.5 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 300# | STD | 52.5 | 56.4 | 165.1 | 22.4 | 5.5 |
| XS | 49.2 | 54.8 | 5.8 | |||
| 160 | 42.8 | 42.8 | 6.1 | |||
| XXS | 38.2 | 38.2 | 6.5 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 600# | STD | 52.5 | 56.4 | 165.1 | 25.4 | 6.2 |
| XS | 49.2 | 54.8 | 6.5 | |||
| 160 | 42.8 | 42.8 | 7 | |||
| XXS | 38.2 | 38.2 | 7.2 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 900# | STD | 52.5 | 56.4 | 215.9 | 38.1 | 13 |
| XS | 49.2 | 54.8 | 13.3 | |||
| 160 | 42.8 | 42.8 | 13.6 | |||
| XXS | 38.2 | 38.2 | 13.9 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 1500# | STD | 52.5 | 56.4 | 215.9 | 38.1 | 13 |
| XS | 49.2 | 54.8 | 13.3 | |||
| 160 | 42.8 | 42.8 | 13.6 | |||
| XXS | 38.2 | 38.2 | 13.9 | |||
| Rating | Bore Schedule | B | C | D | E | Weight (kg) |
| 2500# | STD | 52.5 | 56.4 | 235 | 50.8 | 18.4 |
| XS | 49.2 | 54.8 | 18.6 | |||
| 160 | 42.8 | 42.8 | 19 | |||
| XXS | 38.2 | 38.2 | 19.3 |
DIMENSIONS TABLE
Branch 3″ Nipo Flange Dimensions
View dimensional details for Branch 3″ Nipo Flanges, including pressure rating, bore schedule, length, D, E dimensions, and approximate weight.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
|---|---|---|---|---|---|
| 150# | 10-STD | 115 | 191 | 23.9 | 7.5 |
| XS-80 | 115 | 7.5 | |||
| 160-XXS | 145 | 8 | |||
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
| 300# | 10-STD | 125 | 210 | 28.5 | 10 |
| XS-80 | 125 | 10 | |||
| 160-XXS | 150 | 11 | |||
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
| 600# | 10-STD | 135 | 210 | 38.2 | 13.5 |
| XS-80 | 135 | 13.5 | |||
| 160-XXS | 165 | 14.5 | |||
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
| 900# | 10-STD | 155 | 241 | 44.5 | 17 |
| XS-80 | 155 | 17 | |||
| 160-XXS | 180 | 18 | |||
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
| 1500# | 10-STD | 170 | 267 | 54.1 | 25 |
| XS-80 | 170 | 25 | |||
| 160-XXS | 200 | 26 | |||
| Rating | Bore Schedule | Length | D | E | Weight (kg) |
| 2500# | 10-STD | 200 | 305 | 72.9 | 45.5 |
| XS-80 | 220 | 45.5 | |||
| 160-XXS | 250 | 51 |
PRODUCT RANGE
Explore Our Complete Range of ASME B16.47 Nipoflanges
We provide a wide selection of ASME B16.47 Nipoflanges in Stainless Steel, Carbon Steel, Alloy Steel, Inconel, Hastelloy, Monel, and other material grades. Our range includes ANSI B16.5, BS 4504, DIN 2527, MSS SP-44, Class 150, pipe Nipo Flanges, and custom configurations for industrial branch connections.
☎ +91 99200 79735 / +91 88504 42758 | ✉ info@manibhadrametals.in
| Stainless Steel Nipoflange | Carbon Steel Nipo Flange |
| Alloy Steel Nipo Flange | ANSI B16.5 Class 150 Nipoflange |
| Inconel Nipoflange | Hastelloy Nipo Flange |
| BS-4504 Nipoflange | DIN-2527 Nipoflange |
| Standard MSS-SP-44 Nipoflange | Class 150 LBS Nipo Flange |
| DIN Nipo Flange | Monel Nipoflange |
| SS Nipo Flange | Nipo Flange Standard |
| Nipo Flange Standard | Nipo Flange Material |
| Pipe Nipo Flange | Nipoflange Bonney Forge |
TYPES
Explore Other Types Of Flanges
Discover a complete range of flange designs engineered for different pressure classes, piping systems, and industrial applications.
KNOWLEDGE BASE
Frequently Asked Questions
What is a Nipo Flange?
A Nipo Flange is a one-piece forged branch connection combining a flange with a Nipolet-style outlet. Its integral construction provides a compact, strong, and leak-resistant connection for piping systems and pressure equipment.
Which standards and pressure ratings are available?
Nipo Flanges are available to ASME B16.5, ASME B16.47 Series A and B, MSS SP-44, EN 1092, DIN, AWWA C207, and other standards. Common ratings include Classes 150, 300, 400, 600, 900, 1500, and 2500, along with PN-rated configurations.
Which materials are used for Nipo Flanges?
Common materials include Carbon Steel ASTM A105/A105N, Stainless Steel 304/304L and 316/316L, Alloy Steel, Duplex, Super Duplex, Inconel, Hastelloy, Monel, Incoloy, Titanium, Copper Nickel, and other special alloys.
Are custom and reducing Nipo Flanges available?
Yes. Nipo Flanges can be manufactured in equal or reducing configurations with custom branch sizes, bore schedules, lengths, face types, drilling patterns, materials, and pressure classes according to customer drawings.
What tests and certificates are available?
Nipo Flanges can be supplied with EN 10204 3.1 or 3.2 Material Test Certificates, PMI, ultrasonic testing, radiography, hydrostatic testing, magnetic-particle inspection, NACE certification, and third-party inspection reports.
GET IN TOUCH
Ready to discuss your project requirements?
Our team is here to help you find the right metal solutions for your application.
